Rigol VS5042D PC USB Mixed Signal Oscilloscope and Logic Analyzer 16-Channel 40 MHz

Move to view larger images

Rigol VS5042D PC USB Mixed Signal Oscilloscope and Logic Analyzer 16-Channel 40 MHz Rigol VS5042D PC USB Mixed Signal Oscilloscope and Logic Analyzer 16-Channel 40 MHz

Rigol VS5042D PC USB Mixed Signal Oscilloscope and Logic Analyzer 16-Channel 40 MHz

Rigol VS5042D PC USB Mixed Signal Oscilloscope and Logic Analyzer 16-Channel 40 MHz

Price: $1,144.26
SKU: 57327
0
diggs
Price in points: 11443 points
Points: 107 points

Our wholesale prices:

Quantity  5+   20+   50+   100+
Price  $1,098.49   $1,064.16   $1,041.28   $1,018.39
Description

Rigol VS5042D Description

The Rigol VS5042D is a PC based two channel digital storage oscilloscope with a 16 channel logic analyzer. The VS5042D offers up to 400MSa/s real-time sample rate and up to 40MHz bandwidth. The fully integrated logic analyzer offers up to 200MSa/s.

- The Rigol PC based oscilloscopes has powerful functions: up to 1M memory depth, with Ultrazoom function, it can enable users to observe details while survey the whole waveform; 7 trigger modes, adjustable trigger sensitivity, USB + LAN interfaces and other traditional functions of RIGOL oscilloscopes.

Specification:

Model No. VS5042D
Channels 16
Real-time sample rate 400 MSa/s real time
Bandwidth 40 MHz
Sampling mode Normal, average (2, 4, 8, 16, 32, 64, 128, 256), peak detect
Mathematics A+B, A-B, A×B, FFT (Fast Fourier Transform)
FFT algorithm Rectangle, Hanning, Hamming, Blackman
Max. Input voltage 300 Vrms CAT I
Real-time sample rate 1 Sa/s to 400 MSa/s real time
Time base 10 ns/Div. to 50 s/Div.(Steps 1 - 2 - 5)
Memory 1 Mpts (1 channel)
512 kpts (2 channels, logic analyzer channels)
Analog digital converter (A/D) With the resolution of 8 bits, make sampling on both channels synchronously.
Sensitivity range (V/div) 2 mV/Div to 10 V/Div.
Displacement range ±40V (500mV/DIV - 10V/Div)
±800mV (2mV/DIV - 200mV/Div)
Trigger Channel 1, Channel 2, Ext, Ext / 5, AC Line
Signal system and line/field frequency (Video triggering mode) Support the NTSC, PAL and SECAM broadcasting systems of any field or line frequency.
Cursor measurement Manual, Track and Auto Measure modes
Auto measurement Vpp, Vamp, Vmax, Vmin, Vtop, Vbase, Vavg, Vrms, Overshoot, Preshoot, Freq, Period, Rise Time, Fall Time, +Width, -Width, +Duty, -Duty, Delay1-2 (rise), Delay1-2(fall)
Sample rate (real time) 1Sa/s-200MSa/s
Record length 512 kpts per channel
Input impedance 1MΩ±2%
Logic levels TTL, CMOS, ECL, User (-8V bis +8V)
Interfaces USB (High Speed), LAN
Size 217mm x 141mm x 45mm
(8.54 x 5.55 x 1.77 inch)
Weight 741 g (1.63 lbs)

Special features:

Ultrazoom
You can sample up to 1 million measurement points with this oscilloscope. Easily zoom in and scroll within the signal. Survey macroscopically, observe microscopically.

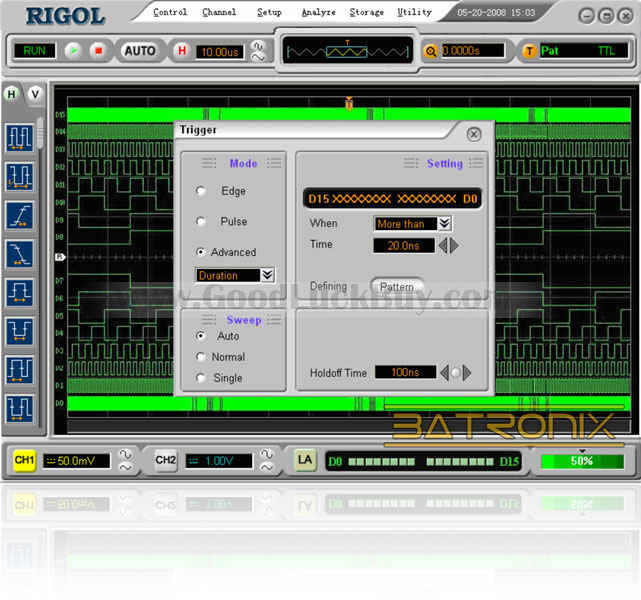

Mixed Signal (Logic Analyzer) and Pattern Trigger
The Rigol VS5042D offers a real mixed signal mode. You can view both analog channels and 16 digital channels at the same time.

Adjustable Trigger Sensitivity
With the Rigol VS5042 oscilloscope you have the ability to filter noise from the signal avoids false triggers.

Alternate Trigger
Provides a true dual timebase display

Slope Trigger
Triggers on the signals rise time or fall time is user defined.

Rising and Falling Edge Trigger
Mainly used to view eye-diagrams normally only available in more advanced DSO’s.

FFT (Fast Fourier Transformation)
The FFT function provides spectrum analysis function for users. Supported FFT algorithm: Rectangle, Hanning, Hamming, Blackman.

Standard package

- includes 2 probes, USB cable, pc software, power adapter and manual
