  You are here:  GoodLuckBuy.comElectronicsMultimeters New BENCH TOP 4 1/2 True RMS MULTIMETER DCV/ACV/DCA/ACA

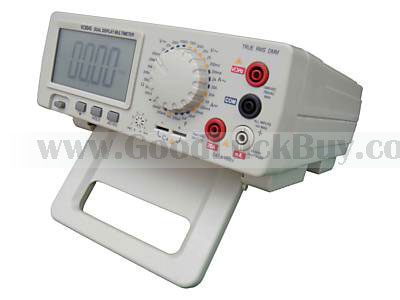

New BENCH TOP 4 1/2 True RMS MULTIMETER DCV/ACV/DCA/ACA

Move to view larger images

New BENCH TOP 4 1/2 True RMS MULTIMETER DCV/ACV/DCA/ACA

Price: $124.59
SKU: 54670
461
diggs
Price in points: 1169 points
Points: 12 points

Our wholesale prices:

Quantity  5+   20+   50+   100+
Price  $119.61   $115.87   $113.38   $110.89
Description
  • 4 1/2 digit large LCD display with backlight;
  • With the DCV,ACV,DCA,ACA,Ω,CAP,Hz,hFE,diode and continuity test function;
  • Max. voltage measuring:DC 1000Vor AC value, resolution:10uV;
  • Max.current measuring:20A,polarity automatic switch,data hold,backlight
  • AC measuring adopt high accuracy true RMS, with bandwidth and AC+DC measuring

Specfications:

Basic function

Range

Basic accuracy

           DCV

             200mV/2V/20V/200V/1000V

±(0.05%+3)

           ACV

             200mV/2V/20V/200V/750V

±(0.8%+80)

           DCA

             20mA/200mA/2A/20A

±(0.35%+10)

           ACA

             200mA/2A/20A

±(0.8%+80)

       Resistance

             200Ω/2kΩ/20kΩ/200kΩ/2MΩ/20MΩ

±(0.1%+5)

       Frequency

             20kHz/200kHz

±(1.0%+20)

      Capacitance

             20nF/2uF/200uF

±(3.5%+20)

Special function

VC8045

                                Diode test

V

                                 hFE test

V

                                True RMS

V

                            Continuity alarm

V

                            Overload protect

V

                              Input protect

10MΩ

                              Sampling rate

3times/s

                         AC Frequency response

40Hz-50kHz

                            Operation way

Manual range

                              Max. display

19999

                                  Power

AC 220V/110V     50Hz/60Hz

General characteristic:

Color beige
Weight 1.4kg
Meter size 245x220x82mm
Standard accessory Test leads, Power cord, English manual
