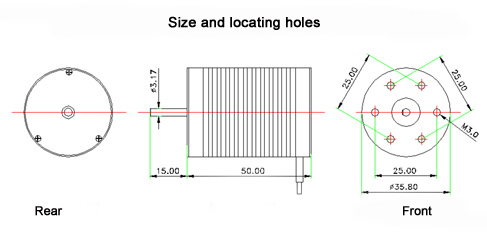

View of The Motor:

ESC Specification:

• Output: Continuous current 35A, burst current 190A.
• Input: 4-9 cells NiMh/NiCd or 2-3 cells LiPo.
• BEC Output: 6V/1.5A.
• Resistance: 0.0015 Ohm.
• Motor Supported: Sensorless Brushless Motor
• Suitable Brushless Motor: 9T and > 9T
• Suitable Car: 1/10, 1/12 on-road or off-road cars / trucks for normal race or sportful race.
• Size: 31.5mm(L) * 27.5mm(W) * 24mm(H).
• Weight: 30g(Without wires)

Note1:

• For 4-6 Cell Ni-xx: You needn't change the fan coming with the ESC;
• For 7-9 Cell Ni-xx: You must change the fan because it cannot work with such a high voltage, so please choose a high voltage fan or supply the fan from the receiver (+6V)
